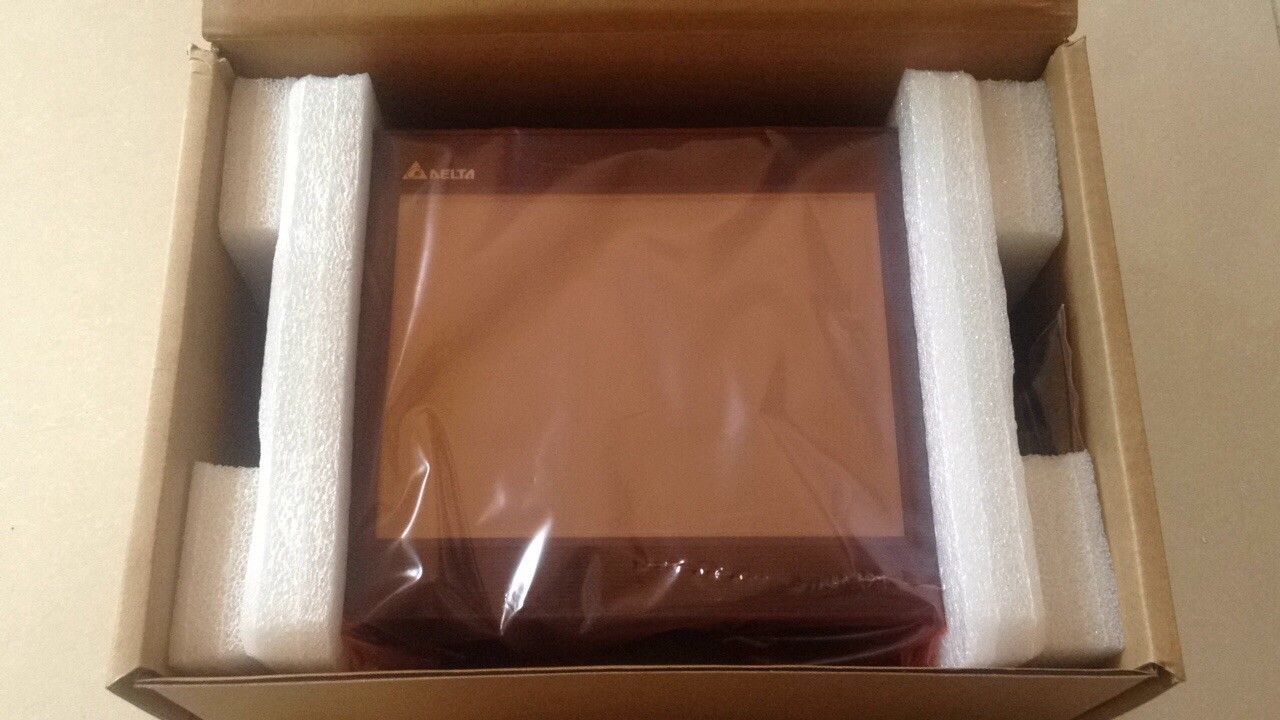

DOP-B08E515 Delta HMI Touchscreen 8" Zoll 800*600 mit Ethernet neu in Box

MODEL

B07S515

B07E515

B07PS515

B08S515

B08E515

B10S615

B10E615

LCD MODULE

Display Type

7” TFT LCD

(65536 colors)

8” TFT LCD

(65536 colors)

10.1” Widescreen TFT LCD

(65536 colors)

Resolution

800 x 600 pixels

800 x 600 pixels

1024 x 600 pixels

Back Light

LED Back Light (less than 10,000 hours half-life at 25°C) (Note 1)

Display Size

141 x 105.75mm

162 x 121.5mm

226 x 128.7mm

Operation

System

Delta Real Time OS

MCU

32-bit RISC Micro-controller

NOR Flash ROM

Flash ROM 128 MB(OS System: 30MB / Backup: 16MB / User Application: 82MB)

SDRAM

64Mbytes

Backup

Memory

16Mbytes

Sound

Effect

Output

Buzzer

Multi-Sound Tone Frequency(2K ~ 4K Hz)/85dB

AUX

N/A

Stereo output

N/A

N/A

Stereo output

N/A

Stereo output

Ethernet

Interface

N/A

IEEE 802.3,

IEEE 802.3u

N/A

N/A

IEEE 802.3,

IEEE 802.3u

N/A

IEEE 802.3,

IEEE 802.3u

10/100

Mbps

auto-sensin

g (has

built-in

isolated

power

circuit (Note 3))

10/100

Mbps

auto-sensin

g(has

built-in

isolated

power circuit

(Note 3))

10/100 Mbps

auto-sensing

(has built-in

isolated

power circuit

(Note 3))

Memory Card

SD Card (supports SDHC)

USB

1 USB Host (Note 2) Ver 2.0 / 1 USB Slave Ver 1.1

Serial COM

Port

COM1

RS-232 (supports hardware flow control)

COM2

RS-232/

RS-485

RS-232 /

RS-485

(has built-in

isolated

power

circuit (Note 3))

RS-232/

RS-485

RS-232/

RS-422/

RS-485

RS-232 /

RS-422 /

RS-485

(has built-in

isolated

power circuit

(Note 3))

RS-232/

RS-422/

RS-485

RS-232 /

RS-422 /

RS-485

(has built-in

isolated

power circuit

(Note 3))

COM3

RS-422/

RS-485

RS-422 /

RS-485

(has built-in

isolated

power

circuit (Note 3))

RS-422/

RS-485

RS-232/

RS-422/

RS-485

RS-232 /

RS-422 /

RS-485

(has built-in

isolated

power circuit

(Note 3))

RS-232/

RS-422/

RS-485

RS-232 /

RS-422 /

RS-485

(has built-in

isolated

power circuit

(Note 3))

Function Key

N/A

Perpetual

Calendar (RTC)

Built-in

Cooling

Method

Natural air circulation

Safety Approval

CE/UL (Note 4) /KCC (Note 4)

Waterproof

Degree

IP65/NEMA4

Operation

Voltage (Note 5)

DC +24V

(-10% ~

+15%)

(please

use

isolated

power

supply)

DC +24V

(-10% ~

+15%)

(has built-in

isolated

power

circuit (Note 3))

DC +24V

(-10% ~

+15%)

(please

use

isolated

power

supply)

DC +24V

(-10% ~

+15%)

(please

use

isolated

power

supply)

DC +24V

(-10% ~

+15%)

(has built-in

isolated

power

circuit (Note 3))

DC +24V

(-10% ~

+15%)

(has built-in

isolated

power

circuit (Note 3))

Voltage

Endurance

AC500V for 1 minute (between charging (DC24V terminal) and FG terminals)

Power

Consumption

(Note 5)

7.68W

5.2W

7.8W

12W

Backup Battery

3V lithium battery CR2032 x 1

Backup Battery

Life

It depends on the temperature used and the conditions of usage, about 3 years or more at

25°C.

Operation

Temp.

0°C ~ 50°C

Storage Temp.

-20°C ~ +60°C

Ambient

Humidity

10% ~ 90% RH [0 ~ 40°C], 10% ~ 55% RH [41 ~ 50°C]

Pollution Degree 2

Vibration

Resistance

IEC 61131-2 Compliant

5Hz≤f<9Hz = Continuous: 1.75mm / Occasional: 3.5mm

9Hz≤f≤150Hz = Continuous: 0.5g / Occasional: 1.0g

X, Y, Z directions for 10 times

Dimensions

(W) x (H) x (D)

mm

184 x 144 x 50

227.1 x 174.1 x 61

272 x 200 x 61

Panel Cutout

(W) x (H) mm

172.4 x 132.4

219.4 X 166.5

261.3 X 189.3

Weight

Approx.800g

Approx.1226g

Approx.1520g
