2phase NEMA14 NEMA17 hybrid stepper motor driver DSP DC24V 2.5A MC425

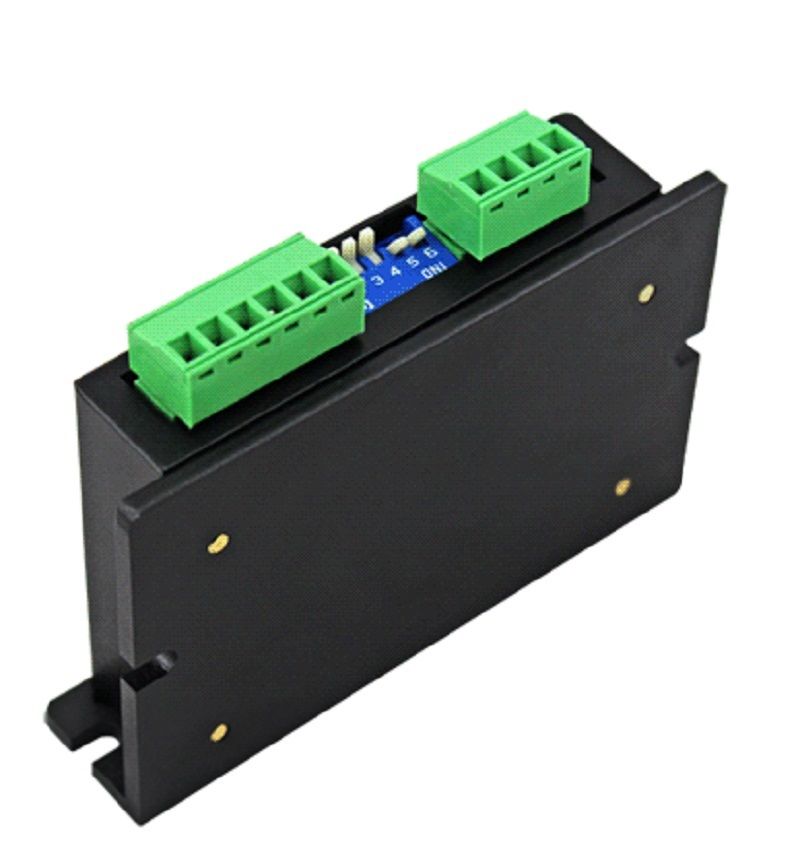

ProductName: two-phase 42 digital stepper driver MC425

MC425 digital low voltage stepper motordriver, using the latest 32 bit DSP technology, suitable for driving 35, 39, 42series motors, with excellent medium and low speed performance. It can set any subdivisionwithin 64 and any current value in rated current, which can meet therequirements of most small equipment. With the built-in micro technology, evenunder low subdivision conditions, it can achieve the effect of highsubdivision. The medium and low speed operation is very smooth, and the noiseis very small.

Can drive the 4 line, 8 line step motor;input voltage range: 18V~36VDC, maximum current 2.5A, 0.1A resolution,subdivision range: 400~6400ppr; signal input: single end, pulse / direction; built-inmicro precision; current control the heating of the motor is reduced; thestatic current automatically halved; photoelectric isolation signal input,strong anti-interference ability; with over-voltage, over-current protectionfunction, small volume.

Electric index

Interface definition

(1) control signal interface

(2) power interface

Application:

Suitable for all kinds of motion controlautomation equipment and instruments, such as electronic processing andtesting, semiconductor packaging, laser cutting and welding, laser printing,packaging machinery, engraving machine, marking machine, cutting machine,apparel plotter, CNC machine tools, automatic assembly equipment etc.. It isthe first choice for users with low noise, high speed performance andcompetitive cost performance.
