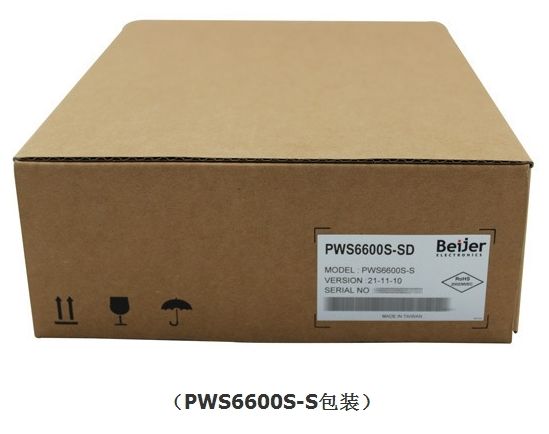

PWS6600S-S HITECH HMI Touchscreen 5.7inch 320 * 240 neu im Karton

Item

PWS6600S-S

Display Type

Mono STN LCD

Display Color

16 shades of blue

Display Size

5.7” (diagonal); display area is 117.2 X 88.4mm

Number of Pixels

320x240; Number of 8x8 characters displayable is 40x30.

Display Adjustment

Via touch panel & VR on the back

Back Light

CCFT; Lifetime 50,000 hours @25 ºC

Touch Screen

Analog

Keypad

1 “Menu” key and 5 user-defined Function keys (F1 ... F5)

Keypad Pressure & Lifetime

350±50gf operating force, Lifetime is over 1 million activations.

Input Power

24VDC±15% ; less than 20W

Flash ROM

4M bytes

RAM

512 K bytes

CPU

32 bits RISC

Battery Backed Memory

512 K bytes

RTC

Yes (w/Replaceable Lithium Battery)
Notice: When using the machine for the first time, please remember to reset RTC.

Data/Recipe

—

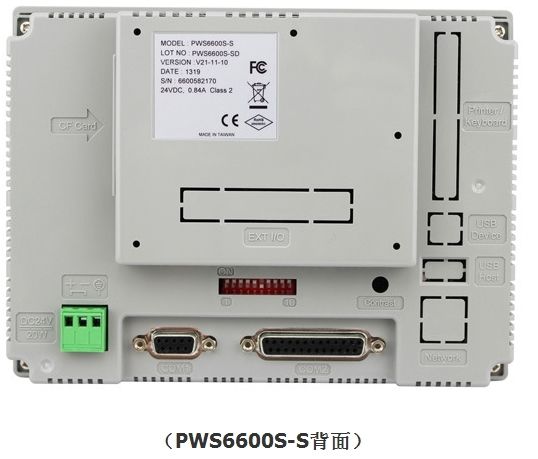

COM1

9-pin female connector: RS232/RS485

COM2

25-pin female connector: RS232/RS422/RS485

Multi-functional Port

—

Ethernet

—

Front Panel Seal

IP65

Ambient Temperature

0~50ºC

Storage Temperature

-10~60ºC

Ambient Humidity

10-90%RH(0~40° C),10-60%RH(41-50° C),non-condensing

Vibration Endurance

0.5mm displacement, 10-55Hz, 2 hours per X, Y, and Z-axis directions

Shock Endurance

10G, 11ms three times in each direction of X, Y, and Z axes

CE

EN61000-6-4,EN61000-6-2

External Dimensions (mm)

195(W) x 145(H) x 59.1(D)

Cut-out Dimensions (mm)

185.8 x 135.8

Weight

0.81 Kg

Cooling

Natural cooling
